Equipment Operation

6-67

Seating/Cabin w/Berth Conversion

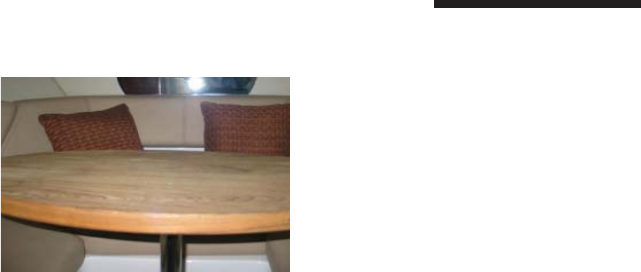

The 2550 cabin seating serves a dual

function. It provides dinette seating

with the optional teak cockpit table.

Insert the leg into the cabin receiver

and insert the table into the leg top.

The hatch provides cabin cross

ventilation. See the illustration.

The cabin can be converted to a

berth. There are 5 detented scallops in the cabin liner to accept a set

of support bars. Under the middle starboard cushion 3 berth support

bars are stored. Follow these steps to set up the berth once the bars

are located.

1. Pull the port aft backrest cushion up to release the cushion from

its holder.

This cushion will serve as one of the berth ﬁ llers.

2. Pull the starboard backrest cushion up to release the cushion from

its holder. This cushion will be used as the other berth ﬁ ller.

3. Insert 1 of the 2 short support bars in the forward most liner

detent.

4. Insert the other short support bar in the next liner detent.

5. Place the longer support bar diagonally from the port aft detent to

the starboard aft detent.

6. Place the port aft backrest on the support bars with the angle aft.

7. Place the starboard backrest cushion on the support bar with the

angle aft which completes the berth conversion.
